Challenge
Structural cracking had developed throughout the property due to inadequate foundations and poor drainage, causing progressive ground movement over time. Restricted access around the home made traditional underpinning and excavation impractical, leaving costly knock-and-rebuild works as the primary alternative.
Solution
Geobear delivered a non-invasive geopolymer injection solution to strengthen and stabilise the soils beneath the foundations without excavation or heavy machinery. The works were completed in a single day using a compact self-contained injection unit, restoring ground stability with minimal disruption to the homeowner.
Treatment depth
Injection points
day delivery

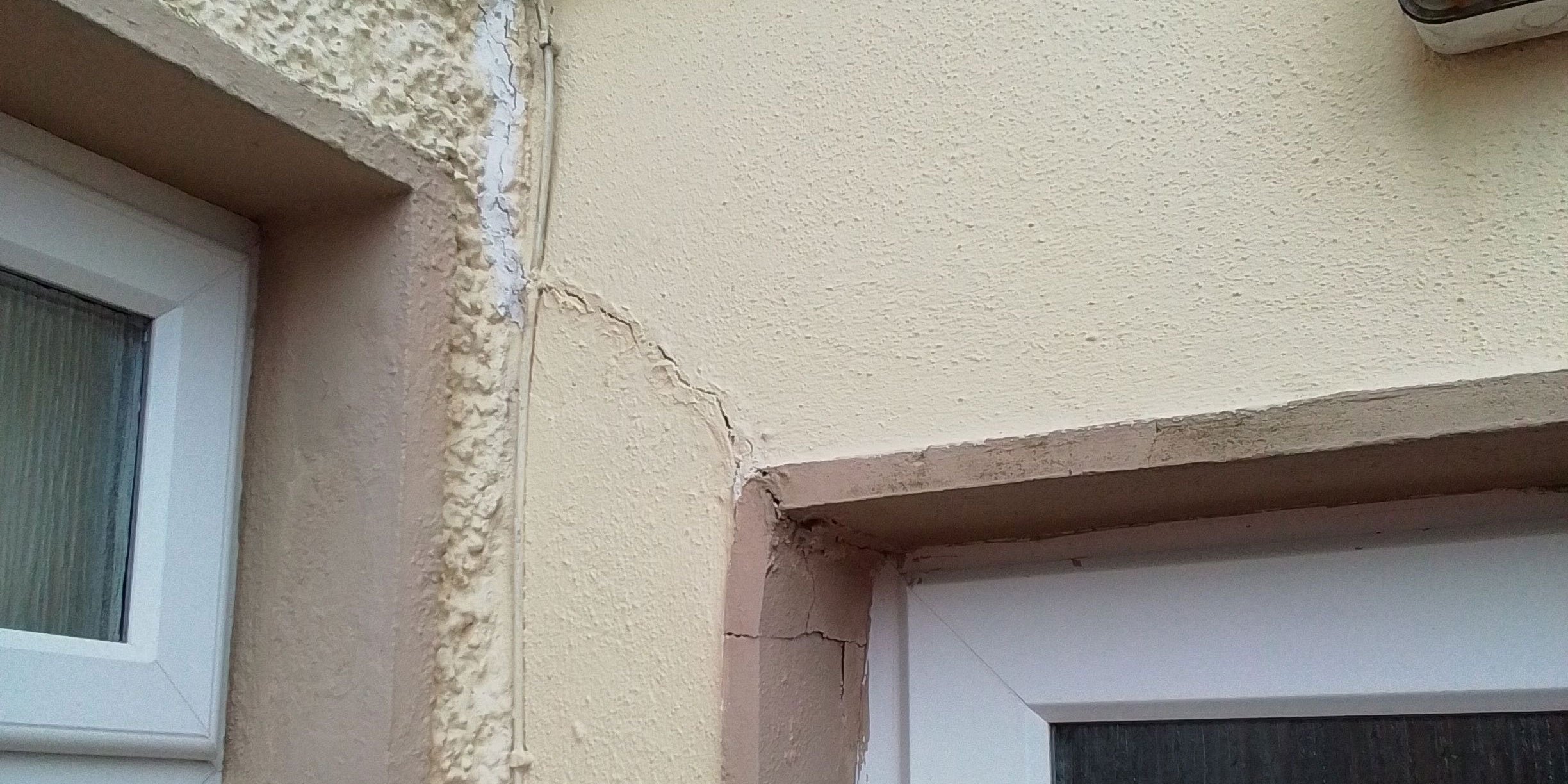

Geobear was contacted by the homeowner of a residential property in Co. Donegal after cracking began appearing on walls and around window and door openings. Investigations identified inadequate foundations beneath the property, combined with poor drainage conditions, as the cause of the ongoing structural movement.
The homeowner required a permanent repair solution that could be completed quickly while minimising disruption to daily life and avoiding extensive construction works around the occupied property.
The property had experienced progressive ground movement over time due to insufficient foundation support and localised weakening of the soils beneath the structure. Cracking had become increasingly visible throughout the property, particularly around openings and structural junctions.
Poor drainage conditions had further contributed to instability within the supporting soils, increasing the risk of continued settlement if left untreated.
Traditional repair methods proved highly challenging due to restricted access around the property. Conventional concrete underpinning would have required excavation works and heavy plant access that could not be easily accommodated within the confined site conditions.
As a result, knocking down and rebuilding the affected structure had emerged as one of the only viable traditional alternatives — carrying significant cost, disruption, and inconvenience for the homeowner.
Geobear designed and implemented a bespoke geopolymer injection programme to stabilise the soils beneath the affected foundations. The treatment was carried out using a compact, self-contained injection unit operated by a two-person crew, eliminating the need for excavation or heavy machinery.

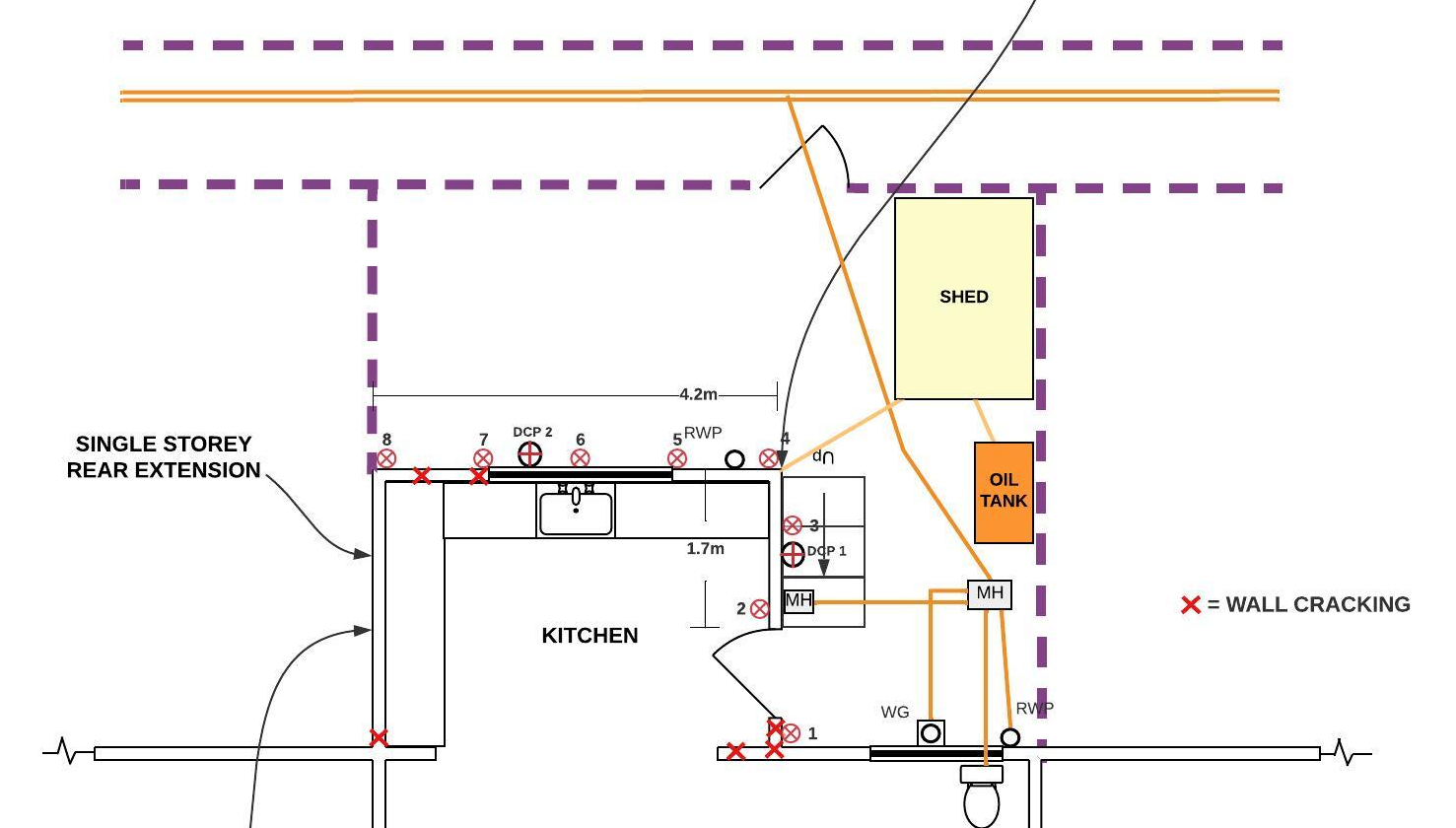

A total of eight injection points were installed to depths of approximately 2.1 metres below the underside of the foundations. Expanding geopolymer resin was injected into the weak soils, compacting and strengthening the ground to provide the structural support the original foundations lacked.
To verify the effectiveness of the treatment, Dynamic Cone Penetrometer (DCP) testing was undertaken before and after the injection works. The testing confirmed a measurable improvement in ground bearing capacity within the treatment zone.
The entire stabilisation programme was completed within a single day, with minimal disruption to the homeowner and no requirement for spoil removal, excavation, or reinstatement works.
The geopolymer injection successfully stabilised the ground beneath the residential property, addressing the structural movement associated with inadequate foundations and poor drainage.
The works were completed safely and efficiently in just one day, restoring confidence in the property's long-term stability without the disruption or cost associated with demolition and rebuild works.
By using Geobear's non-invasive solution, the homeowner avoided extensive excavation, heavy construction activity, and prolonged disruption to the occupied property.
The homeowner awarded Geobear a 10/10 NPS score following completion of the works. They praised the professionalism and efficiency of the installation team and highlighted how impressed they were by the speed and cleanliness of the solution.
Having initially been concerned about the possibility of major disruption and rebuilding works, the customer was pleased that the stabilisation was completed neatly within a single day, with no mess and no need to vacate the property.
